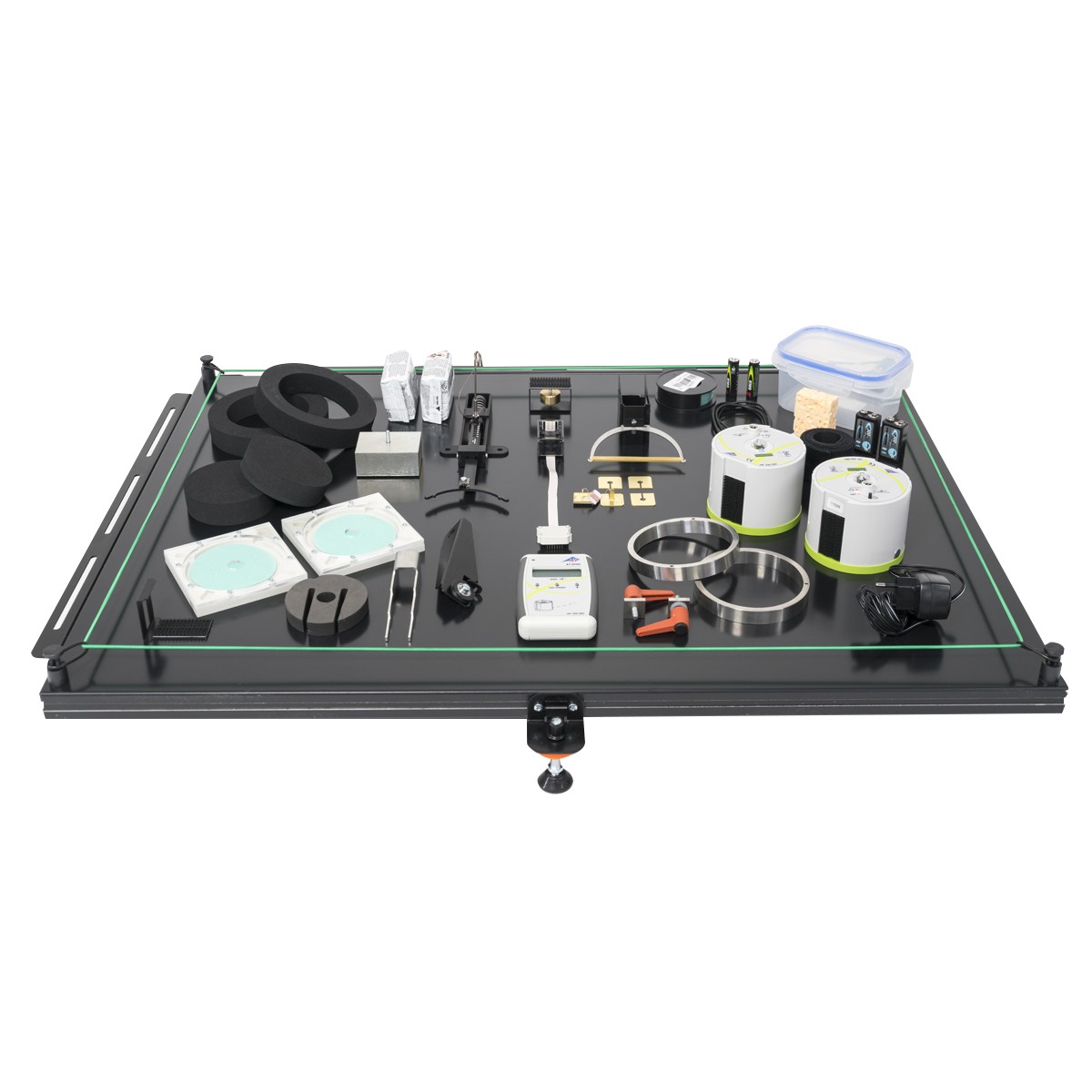

Air Cushion Platform with Inkjet Pucks

Popis The air cushion platform is made of matt black aluminium with a stabilising honeycombed interior structure. It is equipped with profile rails on both sides for the attachment of accessories. The feet which can be adjusted for height allow the platform to be aligned such that it is precisely horizontal. The surface of the platform has rubber edging with four holders at the corners to keep it stretched in place. Inside the inkjet pucks there is a micropump motor which generates compressed air. This emerges from the underside of the pucks so that they float across the recording paper on a cushion of air. Power is supplied to the pucks from built-in, but replaceable NiMH replaceable batteries rated at 9 V, 300 mAh. A display of the charge status and the connectors for the charging cable are located on the top of the pucks. The motion of the pucks is recorded by an inkjet onto standard DIN A1 paper lying on a table top. The pucks also contain a conventional print cartridge. Motions recorded for the two pucks can be distinguished by selecting two different colours, red or black. There is also an option to follow the motion with the help of a high-speed camera (not included). For this purpose the pucks are equipped with bi-coloured LEDs whereby the colours are selectable. Recording is stopped and started by means of an infra-red remote control. The time difference between pulses can be set to between 20 and 100 ms in steps of 5 ms. Two special boards with moistening pads provide storage for the pucks after use and prevent the ink from drying out. A lockable, airtight storage box allows the print cartridges to be stored separately from the pucks for longer periods when they are out of use.

Contents:
1 Air cushion platform, 935x750 mm2
50 Sheets of paper, DIN A1
2 Inkjet pucks, diameter 100 mm, height 95 mm, weight not including battery
and print cartridge 660 g approx.
1 Black print cartridge
1 Red print cartridge
2 NiMH rechargeable batteries, 9 V, 300 mAh
1 Plug-in power supply, 12 V, 500 mA with split charging cable for
2 inkjet pucks
2 Storage boards for inkjet pucks with moistening pads
1 Infra-red remote control
1 Set of accessories for motion of the edge of an inkjet puck
1 Set of accessories for centre of mass motion of two coupled inkjet pucks
1 Set of accessories for uniformly accelerated motion (3 single 5 cN weights, pulley, cord)
1 Set of accessories for motion on an inclined plane
1 Set of accessories for circular motion
2 Foam plastic rings for elastic collisions
2 Velcro strips for inelastic collisions
2 Extra weights, 200 g
1 Launching mechanism
1 Airtight storage box for print cartridge

Experiment Topics:
• Newton‘s equations of motion
• Uniform motion in a straight line
• Motion with uniform acceleration
• Centre of mass motion
• Motion oin circles nd parabolae
• Inclined planes
• Conservation of momentum and energy
• Elastic and inelastic collisions between objects of equal and unequal mass
