Pirani Vacuum Gauge
Catalog number: 1012514
Product availability: Delivery date HERE
Weight:
2 Kg
Price incl. VAT75 237,80 CZK
Description

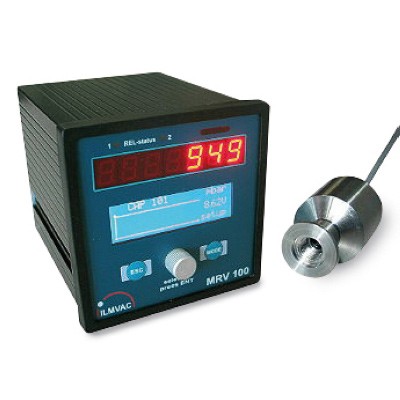

An easily programmable desktop device for measurement and control in fine and coarse vacuums using a Pirani vacuum gauge. Includes a clearly arranged membrane keypad, measuring line (2,5 m) and mains cable.
Vacuum connection: DN 16 KF
Measuring range: 1100 – 0,001 hPa
Measurement uncertainty: < 20% of the display value
Display: Digital LED display in mbar, Pa, psi, torr
Digit height: 10 mm
Readout: 5 per s
Threshold switch: 2 x 230 V, 2 A, independently adjustable
Switching accuracy/hysteresis: ± 1 digit
Permissible overload: 2 bar absolute
Power consumption: max. 15 W
Supply voltage: 100 / 115 / 230 V, 50/60 Hz
Dimensions: 90x120x90 mm3 approx.
Weight: 0.9 kg approx.
Vacuum connection: DN 16 KF
Measuring range: 1100 – 0,001 hPa
Measurement uncertainty: < 20% of the display value
Display: Digital LED display in mbar, Pa, psi, torr
Digit height: 10 mm
Readout: 5 per s
Threshold switch: 2 x 230 V, 2 A, independently adjustable
Switching accuracy/hysteresis: ± 1 digit
Permissible overload: 2 bar absolute
Power consumption: max. 15 W
Supply voltage: 100 / 115 / 230 V, 50/60 Hz
Dimensions: 90x120x90 mm3 approx.
Weight: 0.9 kg approx.
