Launcher S
Catalog number: 1000740
Product availability: Delivery date HERE
Weight:
2 Kg
Price incl. VAT12 523,50 CZK
Description

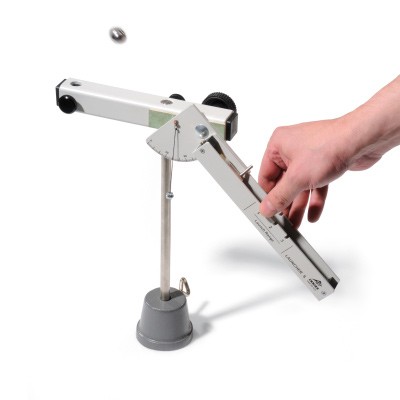

Experimental apparatus for studying vertical and horizontal trajectories as well as trajectories starting at intermediate angles. Also demonstrates the independence of the horizontal and vertical components of motion (for projectiles).
Provides for three different launch velocities. Angle of launch can be adjusted to any arbitrary angle and read off from a protractor scale with a plumb line.
The projectile ball is held in place by a magnet until the moment of launch so that the height of the trajectory is independent of the launch angle. When a projectile is launched, a second ball can be released simultaneously from the other side of the launcher that then descends in free fall. The latter should strike the floor at the same time as the projectile if the launch angle is horizontal.
Launch angle: 0° – 90°
Maximum range: 4 m
Projectile diameter: 16 mm
Projectile weight: 17 g approx.
Diameter : 280 x 90 x 90 mm3 approx.
Total weight: 950 g approx.
Reqiured:
1002934 Stainless Steel Rod 470 mm
1002832 Table Clamp
